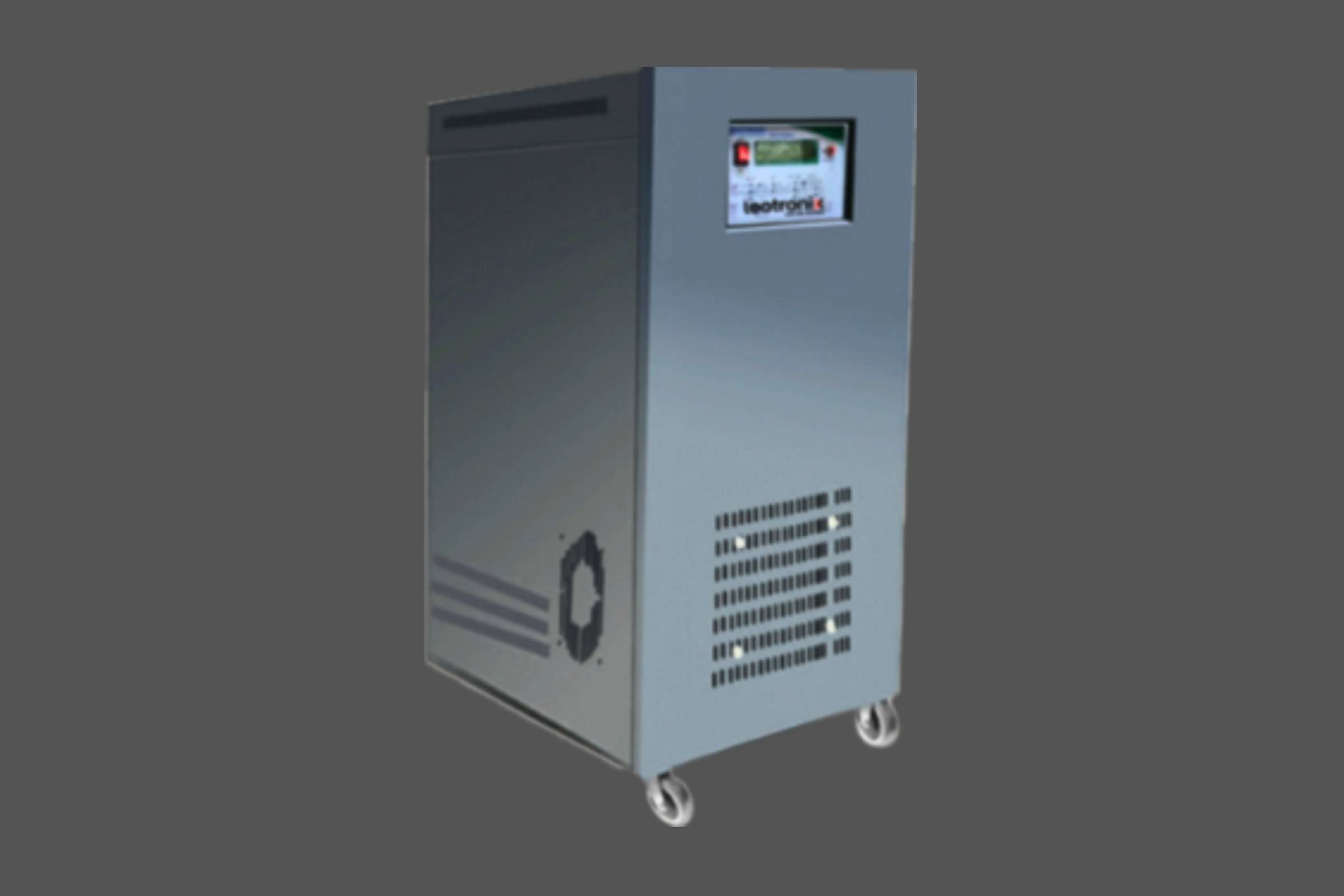

ONLINE UPS
An online UPS(Uninterrupted power supply) is a type of UPS that continuously provides power to the connected load from its battery backup, while at the same time, keeping the a battery charged by converting the incoming AC power into DC power and then back into AC power to the supply load .
In today’s fast-paced world, power disruptions can lead to data loss, system failures, and costly downtime. Don’t let voltage fluctuations or sudden blackouts affect your productivity! Our Online UPS systems provide seamless and uninterrupted power backup to keep your critical devices running 24/7.
✅ Pure Sine Wave Output – Ensures clean and stable power for sensitive equipment.
✅ Double Conversion Technology – Provides 100% protection against power failures.
✅ Fast Charging & High Efficiency – Keeps your backup power ready at all times.
✅ Advanced Microprocessor Control – Intelligent protection for voltage fluctuations.
✅ Wide Range of Capacities – From small offices to large enterprises, we have the perfect UPS for you.
Our Online UPS stabilizers are ideal for servers, medical equipment, data centers, and industrial applications. Say goodbye to power interruptions and hello to continuous performance and peace of mind.
Order Now & Secure Your Power Supply Today.
📞 Call us now for expert guidance.
🛒 Limited-time offers available.
Stay powered. Stay protected. Your success deserves uninterrupted energy.
| Input Voltage | 230VAC +- 20% |
| Output Voltage | 230Volts ± 1% |
| Phase | Single |
| Power Factor | 0.8 to unity |
| Input Freq | 45 Hz to 55 Hz |
| DC Volt | 36VDC – 192VDC or as per customers specification |
| Output Freq | 50 Hz +- 0.1% |
| Isolation Xmer | Provided |
| Topology | IGBT BASED |
| Web form | Sine wave |
| Crest Factor | 3:1 |
| THD | <3% on Liner Load |
| Inv Efficiency | > 90% |
| Over all Effi | >80% |
| Overload |
110% for 30 Min 125% for 10 minutes 150% for 1 minutes |
| Transient Response |
For 0 to 50% & 50% to 100% load Change voltage remains within ± 5% |
| Protection |
Input and Output Over Voltage / Under Voltage DC Over Voltage / Under Voltage Output Overload / Short Circuit / Over Temperature |
| Alarm | Mains Fail, Battery Low , Inverter Trip |
| Display |
LED / LCD Display Output – Voltage / Current / Freq. Input – Voltage / Current / Freq. |
| Indication |
Mains – On / High / Low / Fail DC – On / High / Low Inverter – On / High / Low / Overload |
| Switchgear | MCB Input / Output |
| Temp. | 0 to 40 C |
| Protection | IP- 20, 21 |
| Humidity | Upto 95% Rh (non-condensing) |
| Cooling | Forced Air |
| Auto Bypass | Available |
| Noise 1 mtr | <55 dB |
